Edit the documentation#

This documentation is created with Sphinx. Sphinx uses the reStructuredText (RST) markup format and adds features like cross-referencing.

In this tutorial we will teach you how to edit the documentation locally on your PC. For that we will use Visual Studio Code with Esbonio, which provides Sphinx diagnostics and a live preview.

Hint

For small changes you can click /suggest edit button in the top right corner. GitHub however will only render the files as plain RST and miss all features that Sphinx adds.

Checkout the eCAL git repository:

git clone https://github.com/eclipse-ecal/ecal.git

Download and install Visual Studio Code on your PC (it is available for Windows, Linux and macOS).

https://code.visualstudio.com/
Download and install any Python (3.10 and up) and make sure it is added to the PATH.
- Windows:
  - https://www.python.org/downloads/
  - Choose “Add Python to PATH”
- Ubuntu:
```
sudo apt install python3 python3-pip python3-wheel
```

Navigate to the eCAL documentation directory and create a Python virtual environment:

Windows:

cd ecal\doc\rst
py -m venv .venv
.venv\Scripts\activate
python -m pip install --upgrade pip wheel
python -m pip install -r ..\requirements.txt

Ubuntu:

cd ecal/doc/rst
python3 -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip wheel
python -m pip install -r ../requirements.txt

Install the VS Code Extensions:
- Python by Microsoft
- Esbonio by Esbonio Developers

Create the doc/rst/.vscode/settings.json and paste the following code:

{
    "esbonio.sphinx.pythonCommand": [
        "${venv:.venv}"
    ],
    "esbonio.sphinx.buildArguments": [
        "-M",
        "html",
        ".",
        "_build"
    ]
}

Open the doc/rst/ directory in VS Code and select the Python interpreter from doc/rst/.venv. Open an .rst file and wait for Esbonio to start the Sphinx process.

Hint

If the preview does not start after changing settings.json, press Ctrl + Shift + P and run Esbonio: Restart Language Server and Esbonio: Restart Sphinx Process from the command palette.

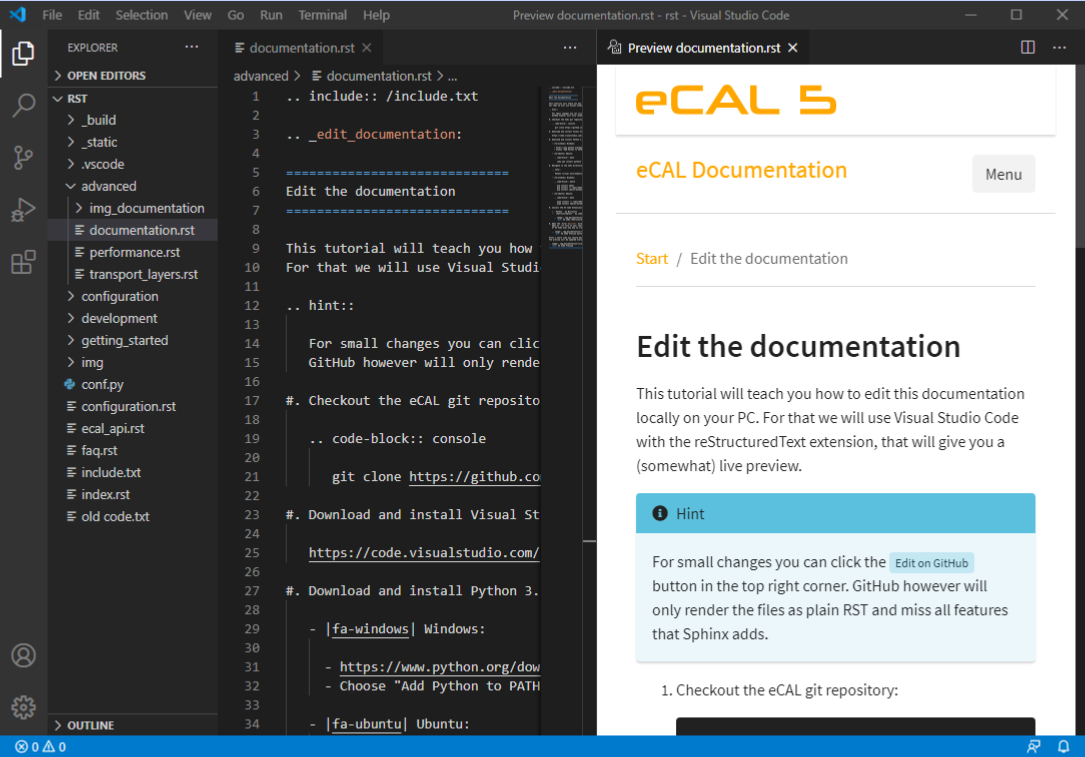

Click the preview button in the upper right corner. The preview will be updated every time you save the .rst file.
