eCAL Performance Benchmarks#
eCAL includes performance benchmarks based on the Google Benchmark framework.
To build them, set ECAL_THIRDPARTY_BUILD_BENCHMARK and ECAL_BUILD_BENCHMARKS to ON.
The applications are named ecal_benchmark_<type>.
The performance benchmarks are also executed automatically on GitHub runners for each commit on the master branch of the GitHub repository. These results can be found on Bencher.
Currently, the benchmarks focus mostly on publisher-subscriber performance via shared memory.
Current benchmark set#
Benchmark name |
For message size of [Bytes] |
For background thread count of |
Calculated frequency (throughput) and datarate available |
Measurement object |
|---|---|---|---|---|
BM_eCAL_Send |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message |
|
BM_eCAL_Send_and_Receive |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message and wait until it has been received |
|
BM_eCAL_Receive_Latency |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time between publishing and receiving a message |
|
BM_eCAL_Send_Zero_Copy |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Zero Copy mode active |
|
BM_eCAL_Send_Handshake |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Handshake mode active |
|
BM_eCAL_Send_Double_Buffer |
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Double Buffer mode active |
|
BM_eCAL_Send_Zero_Copy
_Handshake
|
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Zero Copy and Handshake mode active |
|
BM_eCAL_Send_Zero_Copy
_Double_Buffer
|
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish u message with Zero Copy and Double Buffer mode active |
|
BM_eCAL_Send_Double_Buffer
_Handshake
|
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Double Buffer and Handshake mode active |
|
BM_eCAL_Send_Zero_Copy
_Double_Buffer_Handshake
|
1; 64; 4096; 262,144; 16,777,216 |
Yes |
Time to publish a message with Zero Copy, Double Buffer and Handshake mode active |
|
BM_eCAL_Multi_Send |
1; 4096; 16,777,216 |
1; 2; 4; 8; 16; 32 |
Yes |
Time to publish a message with active background publishers, frequency and datarate are combined values |
BM_eCAL_Ping |
Time to receive a response from a server as a client |
|||
BM_eCAL_Initialize |
Time to initialize eCAL |
|||
BM_eCAL_Initialize_and_Finalize |
Time to initialize and finalize eCAL |
|||
BM_eCAL_Publisher_Creation |
Time to create a publisher object |
|||
BM_eCAL_Subscriber_Creation |
Time to create a subscriber object |
|||
BM_eCAL_Registration_Delay |
Time until a new object is registered via eCAL |
Note
The full name of a benchmark as it shows up in the results is <benchmark name>/<optional variants>/<optional benchmark configurations>,
e.g. BM_eCAL_Send/262144/real_time, BM_eCAL_Multi_Send/8/4096/min_warmup_time:2.000/real_time or BM_eCAL_Ping.
Performance regression analysis#

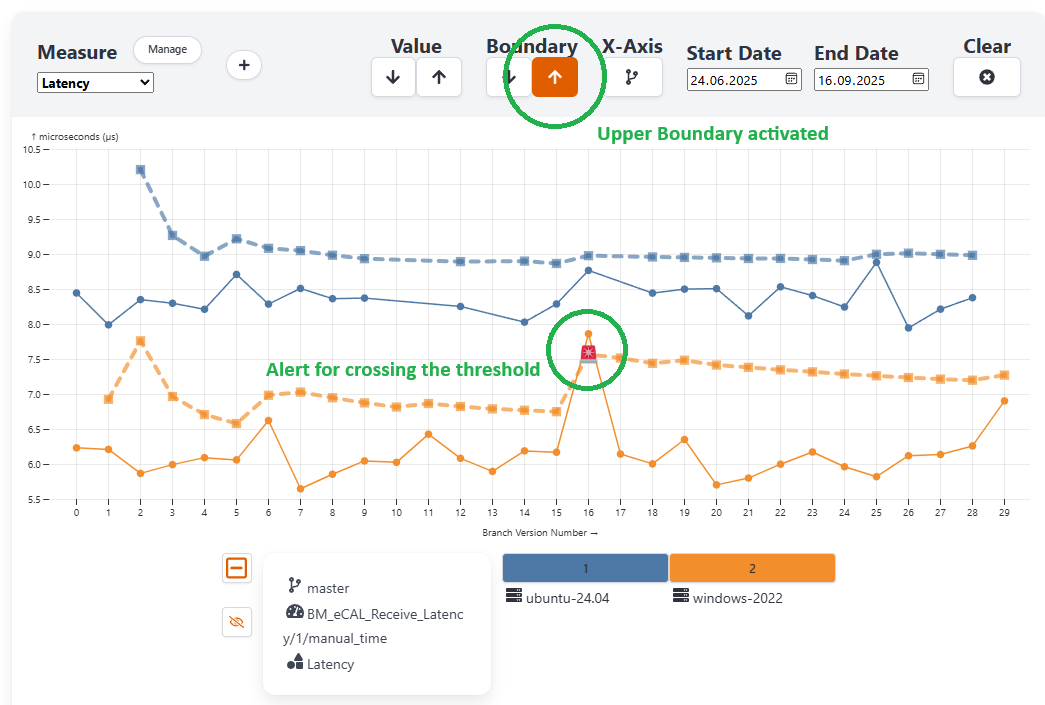

Bencher also scans for statistically significant performance regression in benchmark results via so-called Thresholds. A threshold with a t-test for an alpha value of 0.5% is active on all benchmarks. The current limit can be seen by activating the upper boundary in the performance plot view. So-called Alerts are generated should a result cross this limit, they are indicated via an icon in the performance plot.
